YFMZ1100 High Technology Automatic Hot Roll Film Laminator Machine

FOB Reference Price:Get Latest Price
$34,157.92 - $35,689.66 / Set | 1 Set/Sets Hot Laminator (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Type:
Cold & Hot Laminator
Paper Size:
A0-A6
Brand Name:
FENGMING
Model Number:
YFMZ1100
Place of Origin:
Zhejiang, China
Product name:
Laminating Machine
Speed:
80m/min
Warranty:
1 Year
Max laminating width:
1050mm*900mm
Other name:
Polarizer Film Laminating Machine
Color:
You can decide
Paper Thickness:
100-500g/m2
Base Material:
BOPP BOPET
Mode of operation:
fully automatic
Function:
Wrapping Outer Paper
Supply Ability
Supply Ability:
160 Set/Sets per Year Hot Laminator
Packaging & Delivery
Packaging Details
Quality-Assured High Technology Automatic Hot Roll Film Laminator Machine
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Port
NINGBO&SHANGHAI
Lead Time :
Shipped in 25 days after payment

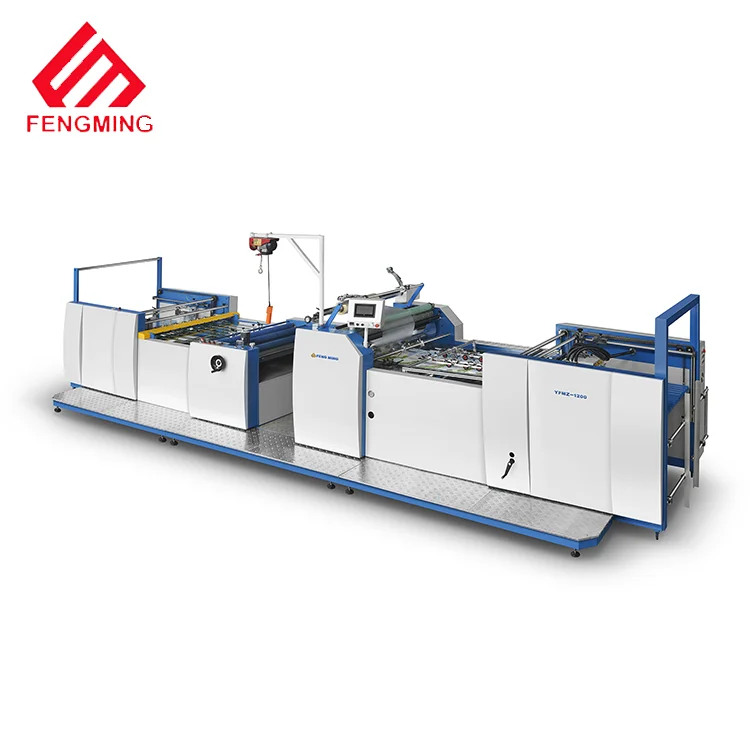

 Super Quality Hot Roll Laminating Machine with Auto Stacker

1. YFMZ1100A/1200A  AUTOMATIC BOPP THERMAL FILM LAMINATING MACHINE

FEATURES

Feeder(vacuum pump system without oil system)

Man-Machine Interface(easy and automatic operation )

Magnetic heating system(heat from surface to inside quickly )

Hydraulic pressure (Automatic adjustment pressure )

Gas Expanded Shaft(with Tension System)

Film Cutter and Film Puncher

Pull Guide and Auto Pull

Anti-Curve Device

Pneumatic Dividing

Auto stacker

Long table for high speed



TECHNICAL SPECIFICATION

Model

YFMZ1100A

YFMZ1200A

Max.laminating size(width × length)

1050mm×1100mm



1200mm×1300mm

Min.laminating size(width × length)

300mm×350mm

300mm×350mm

Laminating Speed

0~90m/min

0~90m/min

Paper Thickness

100-500g/m2

100-500g/m2

Power

36kw(normal is a half)

36kw(normal is a half)

Voltage

220/380V

220/380V

Diameter of Heating Roller

351mm

351mm

Diameter of Film Paper core

≤76mm(3 inch)

≤76mm(3 inch)

Weight:

4600KG

5300KG

Overall Dimension (L×W×H)

8100mm×1800mm×2000mm

8100mm×1900mm×2000mm
