YFMZ1200A Hard Peel Book Post Map Printing Surface Paste Film Laminating Machine

FOB Reference Price:Get Latest Price
$35,000.00 - $40,000.00 / Set | 1 Set/Sets hot roll laminating machine (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Packaging Type:
Case
Packaging Material:
Wood
Type:
Laminating Machine
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
FENGMING
Model Number:
YFMZ1200A
Power:
36kw
Voltage:
220/380V
Application:
Machinery & Hardware
Weight:
5300KG
Automatic Grade:
Automatic
Certification:
CE SGS ISO
Driven Type:
Mechanical
Dimension(L*W*H):
8100mm*1900mm*2000mm
Product name:
Super Quality Hot Roll Laminating Machine with Auto Stacker
Max.Laminating Width:
1200mm*1300mm
Min.Laminating Width:
300mm*350mm
Paper Thickness:
100-500g/m2
Laminating Speed:
0~90m/min
Diameter of Heating Roller:
351mm
Diameter of Film Paper core:
≤76mm(3 inch)
Laminating Temperature:
≤130℃
Mode of operation:
Automatic laminating machine
Function:
Wrapping Outer Paper
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
1000 Set/Sets per Quarter laminating machine with Auto Stacker
Packaging & Delivery
Packaging Details
Super Quality Hot Roll Laminating Machine with Auto Stacker normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Port
NINGBO&SHANGHAI
Lead Time :
Shipped in 10 days after payment

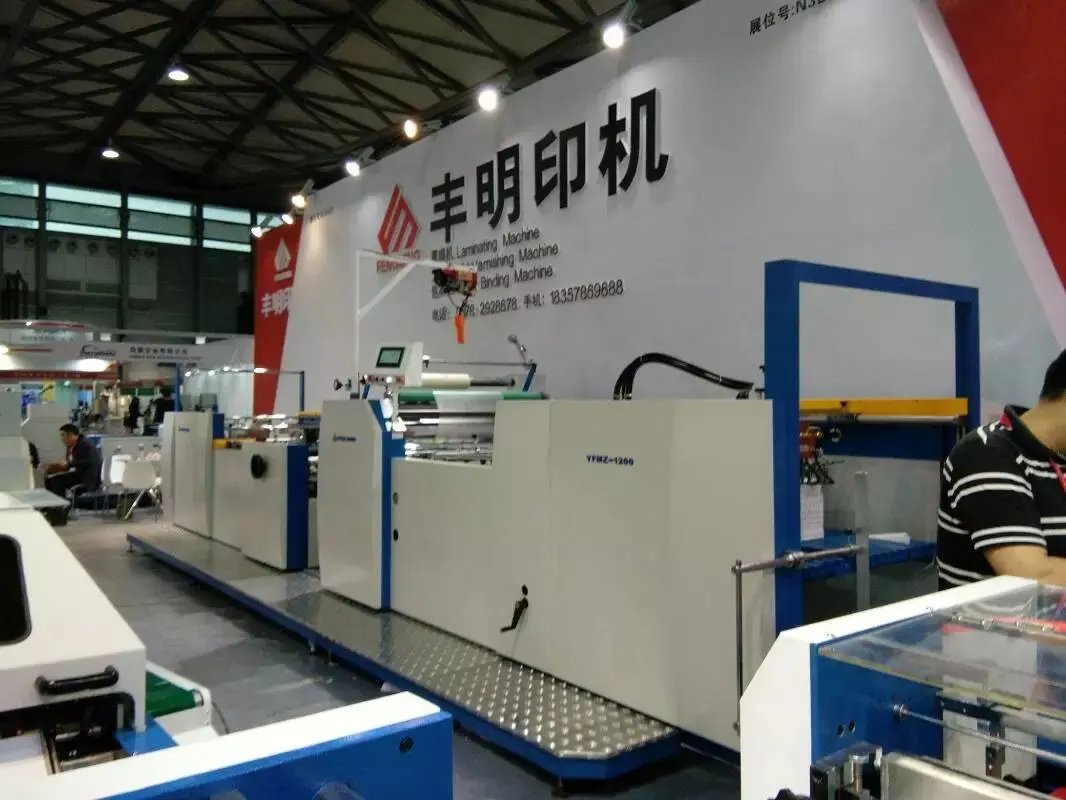

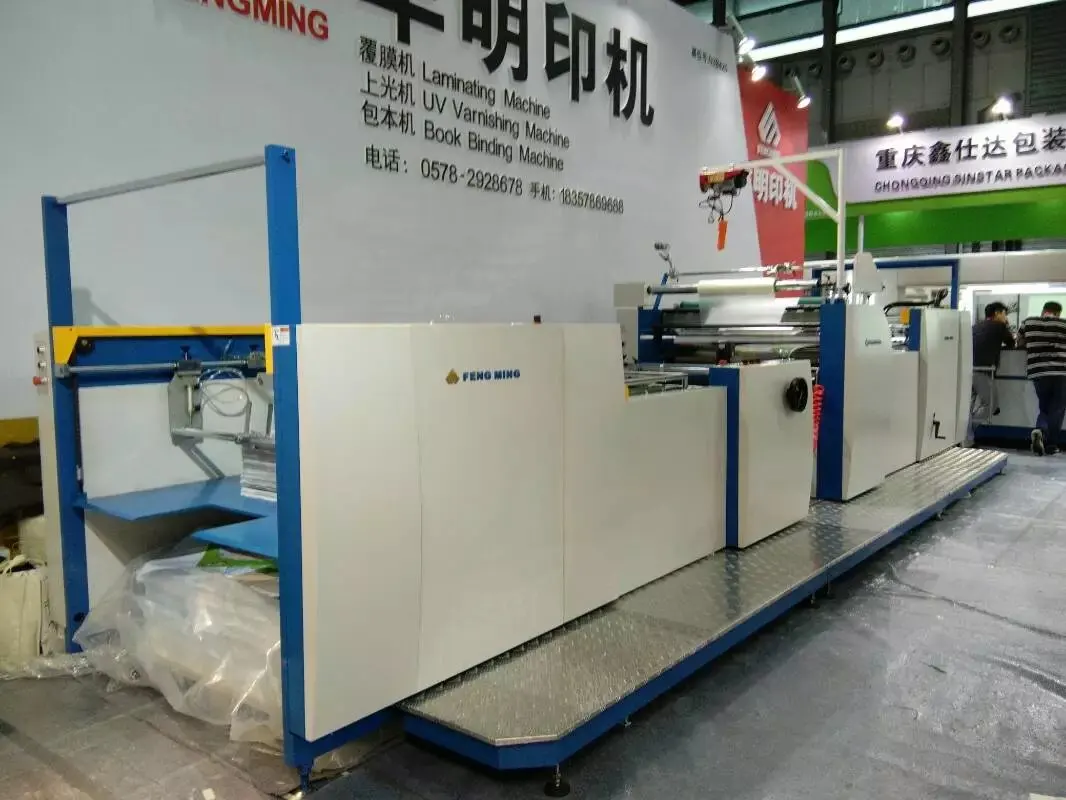

 Super Quality Hot Roll Laminating Machine with Auto Stacker

2.YFMZ1100A/1200A AUTOMATIC BOPP THERMAL FILM LAMINATING MACHINE
FEATURES
Feeder(vacuum pump system without oil system)

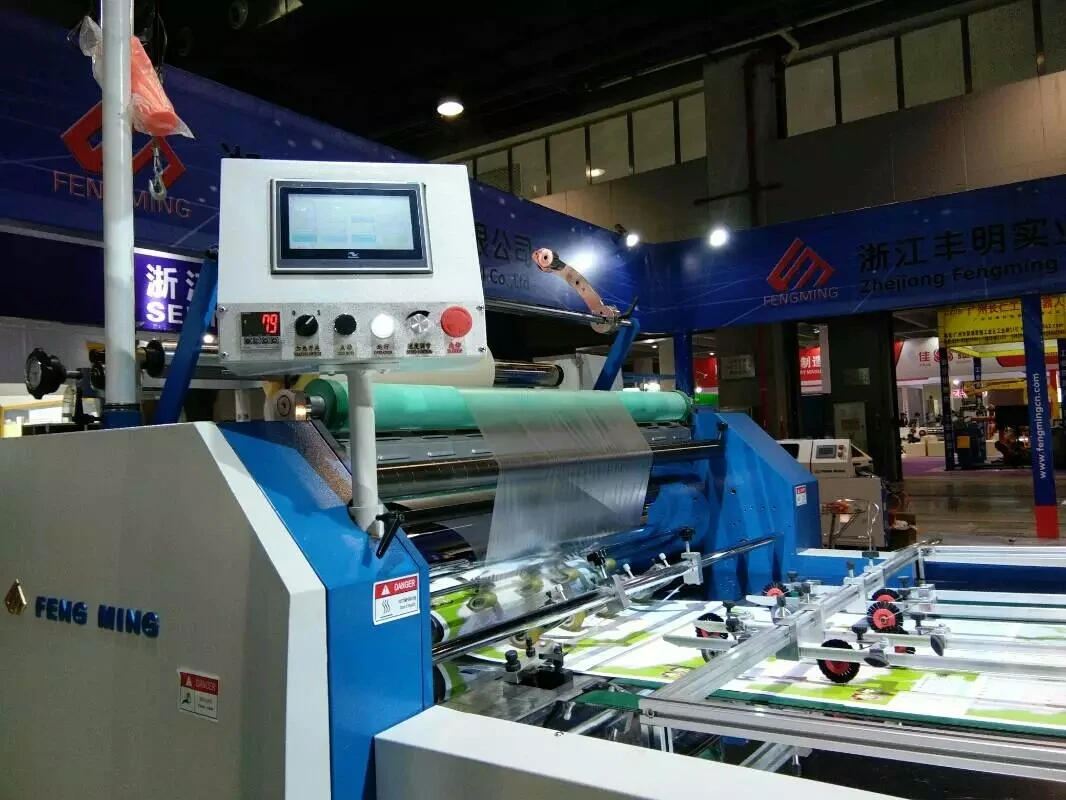

Man-Machine Interface(easy and automatic operation )
Magnetic heating system(heat from surface to inside quickly )
Hydraulic pressure (Automatic adjustment pressure )
Gas Expanded Shaft(with Tension System)
Film Cutter and Film Puncher
Pull Guide and Auto Pull
Anti-Curve Device
Pneumatic Dividing
Auto stacker
Long table for high speed

TECHNICAL SPECIFICATION

ModelYFMZ1100AYFMZ1200A
Max.Laminating Width1050*1100mm1200*1300mm
Min.Laminating Width300*350mm300*350mm
Laminating Temperature≤130℃≤130℃
Paper Thickness100-500g/m²100-500g/m²
Laminating Speed100m/min100m/min
Total power36KW(normal is a half)36KW(normal is a half)
Voltage220/380V220/380V
Diameter of Heating Roller360mm360mm
Diameter of Rubber Roller320mm320mm
Diameter of Film Paper core76mm(3 inch)76mm(3 inch)
Total Weight4600KG4900KG
Overall Dimensions8100mm×1800mm×2000mm8100mm×1900mm×2000mm
