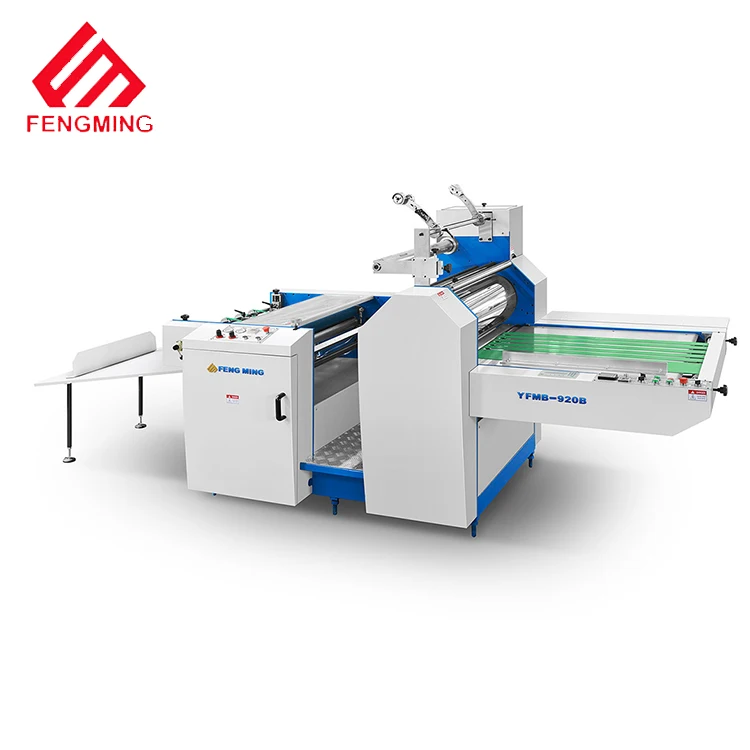

2017 made in china semi-automatic thermal film lamination machine

FOB Reference Price:Get Latest Price
$13,000.00 - $15,000.00 / Set | 1 Set/Sets semi-automatic thermal film lamination machine (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Packaging Type:
Case
Packaging Material:
Wood
Type:
Laminating Machine
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
FENGMING
Model Number:
YFMB-920L
Power:
13KW
Voltage:
220/380V
Application:
Machinery & Hardware
Weight:
1700kg
Automatic Grade:
Semi-Automatic
Certification:
CE SGS ISO
Driven Type:
Mechanical
Dimension(L*W*H):
3180*1780*1800mm
Product name:
2017 made in china semi-automatic thermal film lamination machine
Max.Laminating Width:
880mm
Laminating Temperature:
≤130℃
Paper Thickness:
80-500g/㎡
Laminating Speed:
53m/min
Diameter of Heating Roller:
268/320mm
Diameter of Film Paper core:
≤76mm(3 inch)
Total Weight:
1700kg
Mode of operation:
semi-auto laminating machine
Function:
Wrapping Outer Paper
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
1000 Set/Sets per Quarter china laminating machine a1 size
Packaging & Delivery
Packaging Details
2017 made in china semi-automatic thermal film lamination machine normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Port
NINGBO&SHANGHAI
Lead Time :
Shipped in 10 days after payment




2017 made in china semi-automatic thermal film lamination machine



Model

YFMB920L

YFMB1200L

Max.Laminating Width

880mm

1100mm

Laminating Temperature

130

130

Paper Thickness

80-500g/

80-500g/

Laminating Speed

53m/min

53m/min

Total power

13kw(normal is a half)

13kw(normal is a half)

Voltage

220/380V

220/380V

Diameter of Heating Roller

268/320mm

268/320mm

Diameter of Film Paper core

76mm(3 inch)

76mm(3 inch)

Total Weight

1700kg

1800kg

Overall Dimension

3180*1780*1800mm

3180*1780*1800mm
