The Professional And Leading Manufacturer New Type Laminating Machine

FOB Reference Price:Get Latest Price
$35,000.00 - $40,000.00 / Set | 1 Set/Sets paper laminating machine (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Packaging Type:
Case
Packaging Material:
Wood
Type:
Laminating Machine
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
FENGMING
Model Number:
YFMZ1200L-1
Power:
36kw
Voltage:
220/380V
Application:
Machinery & Hardware
Weight:
4600KG
Automatic Grade:
Automatic
Certification:
CE SGS ISO
Driven Type:
Mechanical
Dimension(L*W*H):
6000mm*1800mm*2000mm
Product name:
High Quality Automatic Adjustment Pressure Paper Laminating Machine
Max.Laminating Width:
1200mm*1300mm
Min.Laminating Width:
240mm*370mm
Laminating Temperature:
≤130℃
Paper Thickness:
100-500g/m2
Laminating Speed:
0~80m/min
Diameter of Heating Roller:
351mm
Diameter of Film Paper core:
≤76mm(3 inch)
Mode of operation:
auto laminating machine
Function:
Wrapping Outer Paper
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
1000 Set/Sets per Quarter new type laminating machine
Packaging & Delivery
Packaging Details
The Professional And Leading Manufacturer New Type Laminating Machine normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Port
NINGBO&SHANGHAI
Lead Time :
Shipped in 10 days after payment
Product Description

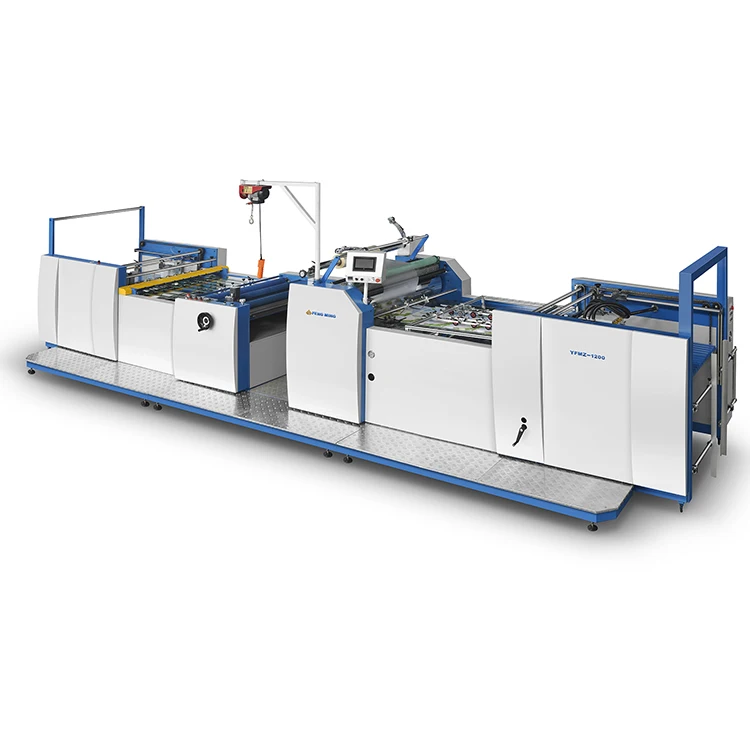

YFMZ1200 Automatic Thermal Film Laminating Machine

Model

YFMZ1100L

YFMZ1200L

YFMZ920L

Max.laminating size(width × length)

1050mm×1000mm



1200mm×1300mm

920*1000mm

Min.laminating size(width × length)

240*270mm

240*270mm

240*270mm

Laminating Speed

0~80m/min

0~80m/min

0~80m/min

Paper Thickness

100-500g/m2

100-500g/m2

100-500g/m2

Power

36kw(normal is a half)

36kw(normal is a half)

36kw(normal is a half)

Voltage

220/380V

220/380V

220/380V

Diameter of Heating Roller

351mm

351mm

351mm

Diameter of Film Paper core

76mm(3 inch)

76mm(3 inch)

76mm(3 inch)

Weight:

5300KG

4600KG

4000KG

Overall Dimension (L×W×H)

6000mm×1900mm×2000mm

6000mm×1800mm×2000mm

5800mm×1600mm×2000mm





Product Features:

Product Features:

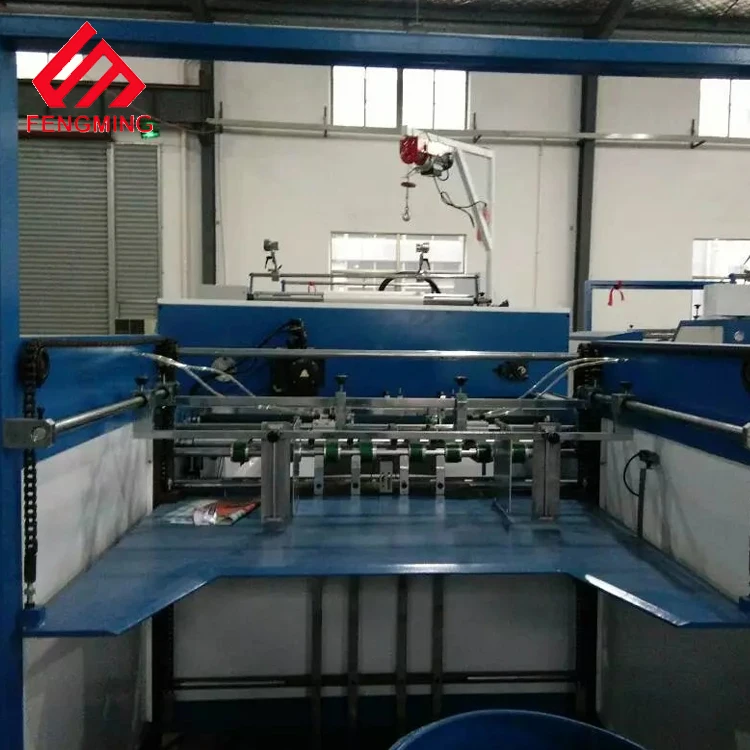

Feeder(vacuum pump system without oil system)
Man-Machine Interface(easy and automatic operation )
Magnetic heating system
1.Hydraulic pressure (Automatic adjustment pressure )
2.Gas Expanded Shaft(with Tension System)
3.Film Cutter and Film Puncher
4.Pull Guide and Auto Pull
5.Anti-Curve Device
6.Pneumatic Dividing and Disc Cutter(with Auto Stacker)
7.With a dividing structure to wash and change rollers easily.
Main feature: Equip with Chain knife(sprocket knife), can cut all kinds of film, such as PET film, PVC film....
PS: Using glueless and thermal film to laminate paper

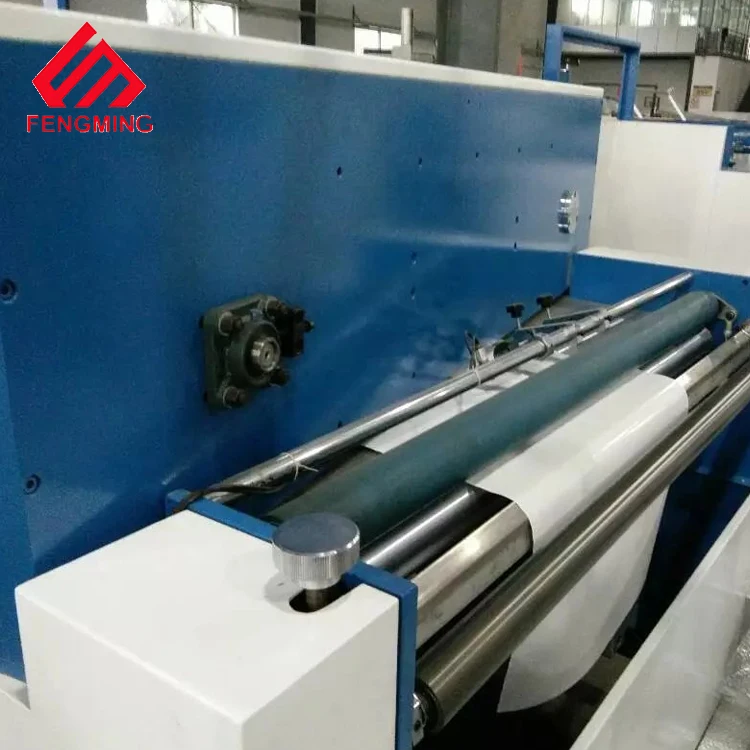

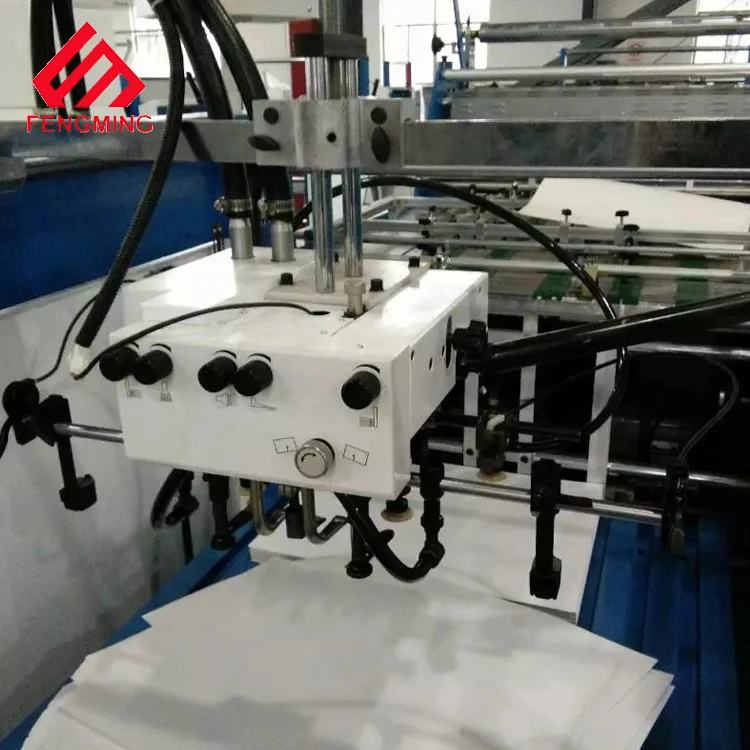

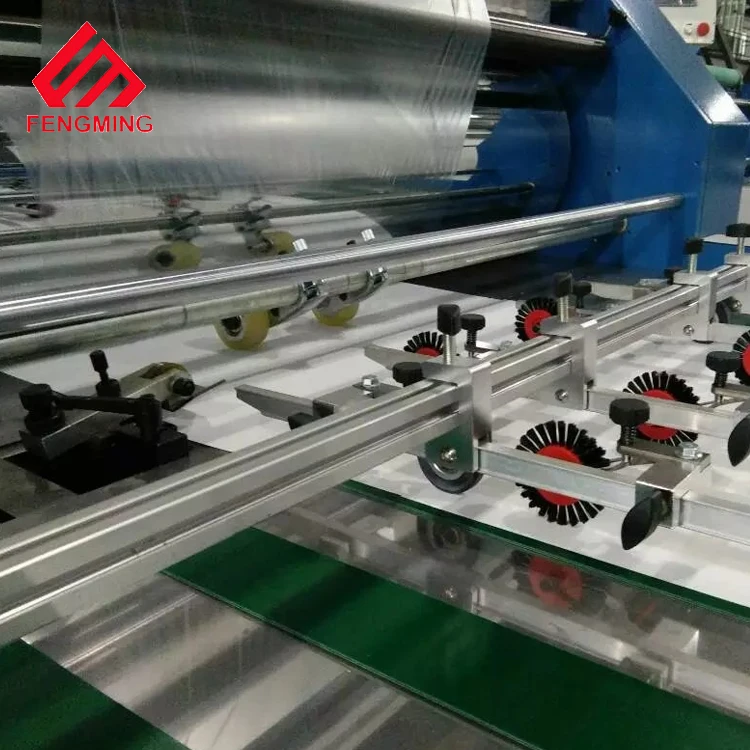

Production Display:



psb __.png
psb (1).jpg
psb (6).jpg
psb (7).jpg
psb (9).jpg
psb (10).jpg
