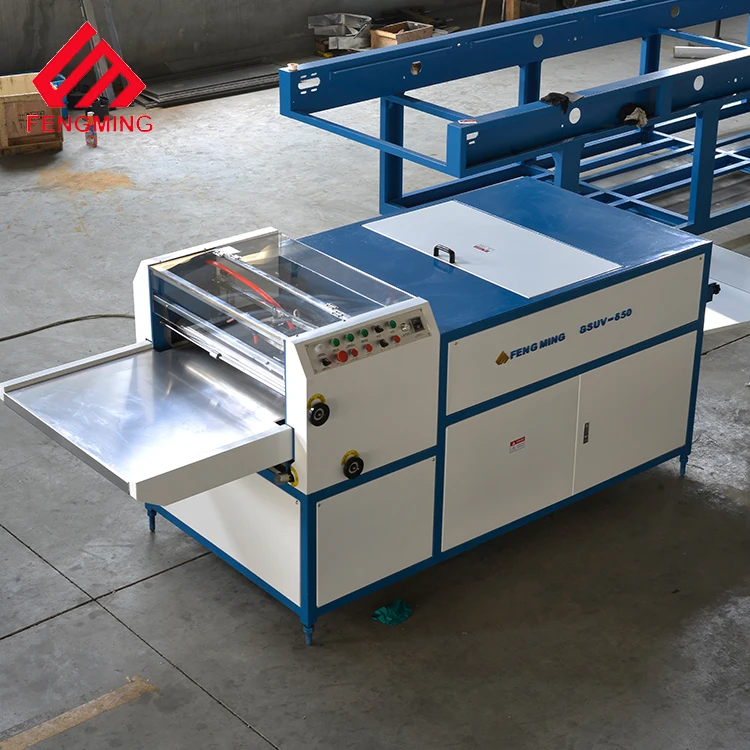

SGUV-650 Manual Feed and Collection Small UV Coating Machine

FOB Reference Price:Get Latest Price
$12,253.96 - $12,866.66 / Set | 1 Set/Sets uv coating machine (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Packaging Type:
Cartons
Packaging Material:
Wood
Type:
Coating Machine
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
FENGMING
Model Number:
SGUV-650
Power:
9KW(normal is a half)
Voltage:
380V
Application:
Machinery & Hardware
Weight:
600kg
Automatic Grade:
maual
Certification:
CE Certificate
Driven Type:
Mechanical
Dimension(L*W*H):
2580*1130*1140mm
Product name:
SGUV-650 Manual Feed and Collection Small UV Coating Machine
Max.Coating Width:
630mm
Warranty:
1 Year
Overall Dimensions:
2580*1130*1140mm
Diameter of Coating Roll:
100mm
Paper Thickness:
80-200g/㎡(200-600g/㎡ with air knife)
Max.Feeder Speed:
1400pcs/hour(15-20m/min for thin paper,20-30m/min for thick paper)
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
150 Set/Sets per Year small uv coating machine
Packaging & Delivery
Packaging Details
SGUV-650 Manual Feed and Collection Small UV Coating Machine
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Port
NINGBO&SHANGHAI
Lead Time :
Shipped in 20 days after payment


 SGUV-650  Manual Feed and Collection Small UV Coating Machine

MODEL

SGUV-650

Max.Coating Width

630mm

Max.Feeder Speed

1400pcs/hour(15-20m/min for thin paper,20-30m/min for thick paper)

Diameter of Coating Roll

100mm

Total Power

9KW(normal is a half)

Total Weight

600kg

Overall Dimensions

2580*1130*1140mm





Product Features:

PLC Control

Air Knife(If you need to coat thin paper)

Equipped with 2 UV Lamps and 4 IR Lamps

In this equipment, the Ductor Blade,Conveyor Belt and Rubber Roller are most often changed . (PS:When you buy the machine, we will  free give you two Doctor Blades, one UV lamp and one IR lamp)

Manual Feed and Manual collection


_DSC5137.JPGpsb (9).jpg_DSC5140.JPG
